Standard Classroom

Classroom Layout

classroom-layout

Interactive Display

  • Documentation: https://docs.lvusd.org/staff/presentation-systems

  • OneScreen T7 Training: Youtube Playlist

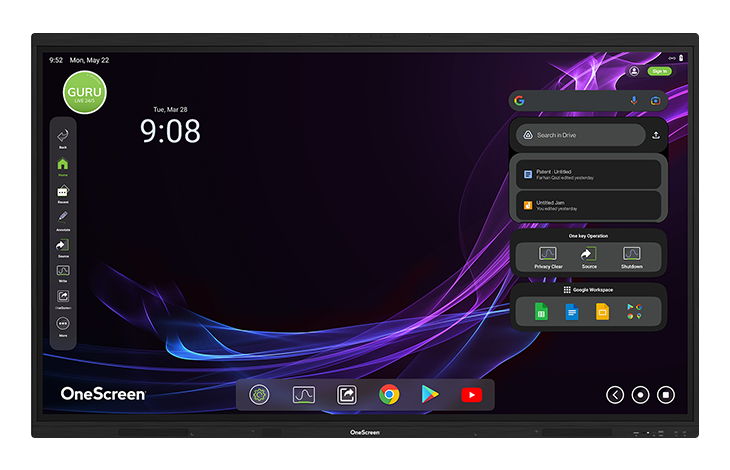

  • OneScreen Touchscreen T7 86in empowers our classroom with tools such as:
    • Wireless Presenting with pin ( Airplay, Chromecast, OneScreen Share )
    • Integration with Google Drive
    • Multi-Touch with Palm Detection
    • Multiple input source options ( HDMI, USB-C recommended )
    • Split-screen support
    • Remote diagnostic and messaging
    • 10 year warranty

  • The display will be wall-mounted on top of existing whiteboard for optimal height

    t7-onescreen

Teachlogic Voice Reinforcement System

Documentation: https://docs.lvusd.org/staff/presentation-systems

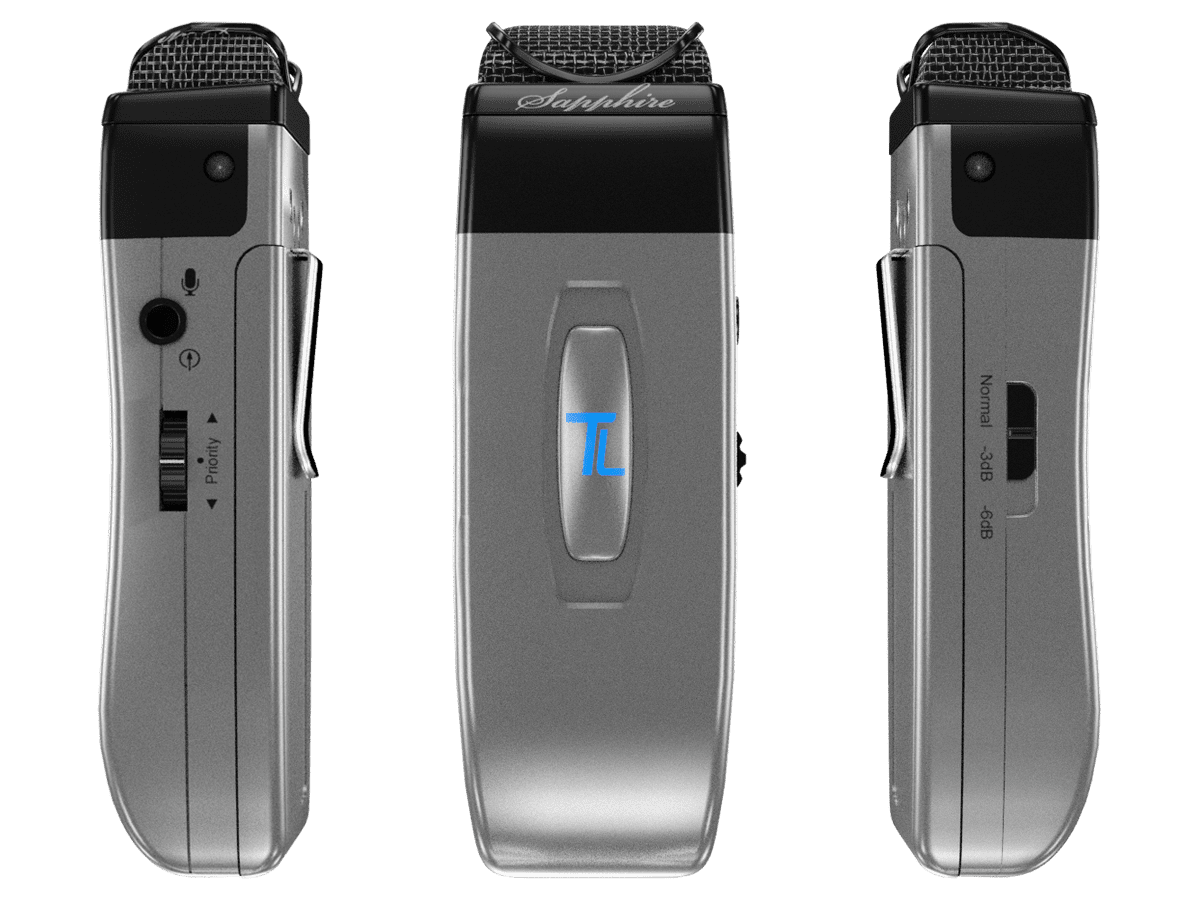

  • The Sapphire Infrared Microphone is a wireless microphone that amplifies the teacher’s voice over the classroom speakers via the Teachlogic amplification system

    teachlogic-sapphire-mic

  • The Wall Mount Control Panel allows volume control over all inputs on the Teachlogic amplification system, and provides an additional audio cable connection as well as Bluetooth capabilities

    teachlogic-touch-panel

Campus Paging System

Documentation: https://docs.lvusd.org/staff/bells

  • The Algo 8410 is a 15.6 inch Digital PA with Screen and Strobe Light. Campus PA accouncements will trigger a green light when played, and the displayed image will eventually change for emergency events.

    algo-8410-display-pa

  • The Algo 1203 is an Emergency Button. When pushed it creates an immediate two-way call to the site’s emergency team.

    algo-1203-button

  • EdTech has built a custom application to enhance these products and empower teachers and staff ability to customize volume, settings, and PA groups with these products. (Instructions can be found at the documentation page linked above)
